HDB-S068
HAIDE
| Quantity: | |
|---|---|

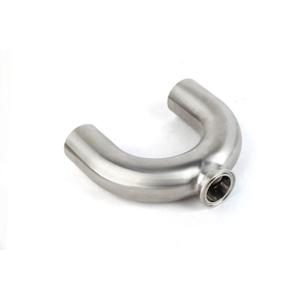

Changing fluid direction: Sanitary U-shaped elbows are mainly used in pipeline systems to connect two pipes with the same nominal diameter, enabling the pipeline to achieve a 180 ° turn.
Meet hygiene requirements: Its material is usually 304 or 316L stainless steel, with a mirror polished surface to meet the surface roughness requirements of food or pharmaceutical grade (such as Ra ≤ 0.8mm or Ra ≤ 0.4mm), which can effectively prevent bacterial growth and ensure the hygiene of the pipeline system.
Suitable for multiple media: It has good corrosion resistance and temperature difference resistance, and is suitable for transporting various chemical media, including high viscosity fluids and fluids containing solid particles.
Easy to clean and maintain: Designed with no dead corners, it is easy to perform CIP (cleaning in place) and SIP (sterilization in place) operations.
Sanitary U-shaped elbows are widely used in industrial fields such as food, dairy, beverage, beer, pharmaceuticals, cosmetics, etc. These industries have extremely high requirements for the hygiene level of pipeline systems. Sanitary U-shaped elbows can effectively avoid cross contamination and ensure product quality and safety.
installation
Choose the appropriate elbow: Based on factors such as the actual layout of the pipeline system, fluid properties, working pressure, and temperature, select sanitary grade U-shaped elbows of appropriate size and material.
Cleaning and inspection: Before installation, ensure that the elbows and pipes are clean to avoid oil stains, impurities, etc. adhering to the elbows. At the same time, check the quality of the elbow, such as whether the diameter, wall thickness, etc. meet the requirements.

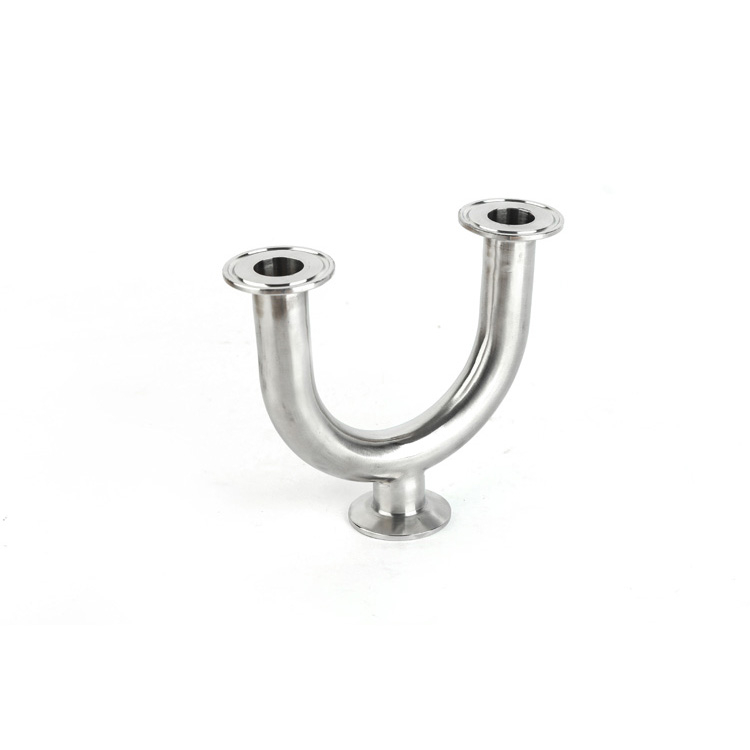

Connection method: There are various connection methods for sanitary U-shaped elbows, including welding, clamp, and threaded types. Welded elbows usually require on-site welding, while clamp and threaded types are easy to install and disassemble quickly.
For welded elbows, it is necessary to operate according to welding standards to ensure welding quality.
For clamp or threaded elbows, first align the elbow with the pipe, gently push it in, and then tighten the clamp or thread firmly to ensure a tight connection.
Fixing and inspection: After installation, check if all connections are secure and there is no water leakage. If necessary, pressure testing or leak detection can be conducted.
During the installation process, avoid using tools that may damage the elbow, such as steel pipe pliers.
Avoid contact with open flames, keep away from heat sources, and avoid prolonged exposure to sunlight.
For long-term use of elbows, regular inspection and maintenance should be carried out, the working surface should be cleaned, and stored properly.
Sanitary grade U-shaped elbows play an important role in industrial fields with high hygiene requirements due to their excellent hygiene performance and reliability. Proper installation and maintenance can ensure their long-term stable operation.
