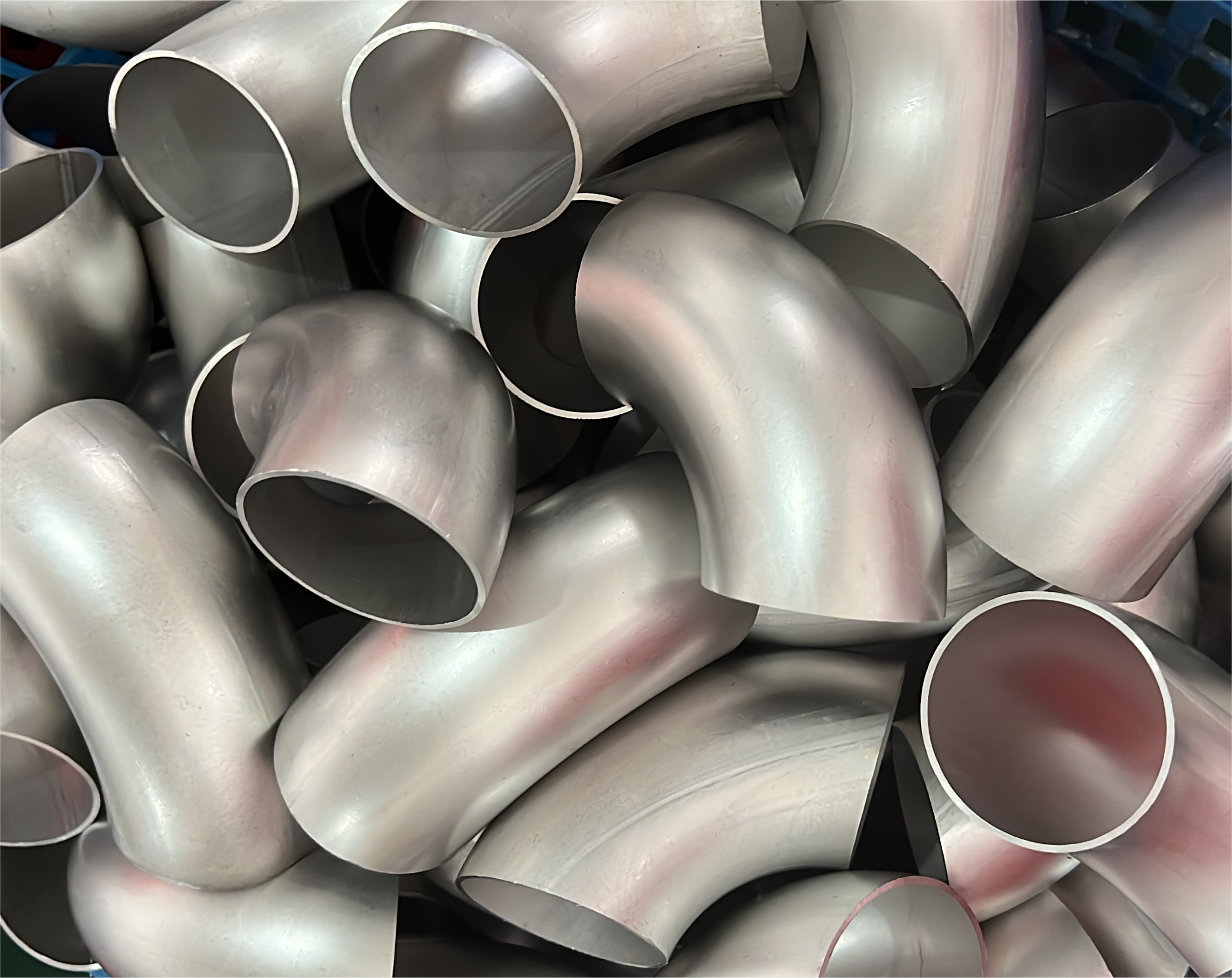

The role of stainless steel elbows in the chemical industry

In the chemical industry, stainless steel elbows are a very important type of pipeline connector that plays a crucial role in multiple aspects. The following is a detailed explanation:

Change of pipeline direction

Function: The main function of stainless steel elbows is to change the direction of the pipeline, so that the pipeline can be laid out according to the requirements of the process flow. In chemical production, pipeline systems usually require complex layouts based on equipment layout and process flow. Bends can achieve the turning of pipelines, ensuring that fluids can flow smoothly from one direction to another.

For example, in the inlet and outlet pipelines of reaction vessels in chemical plants, it is usually necessary to connect the pipelines from vertical to horizontal direction or from one equipment to another through bends. For example, in a large polymerization reaction device, the raw material pipeline needs to be connected from the ground storage tank to the reaction kettle at a higher height through an elbow, and the stainless steel elbow plays a key turning role here.

Corrosion resistance

Function: The chemical industry involves a large amount of corrosive media, such as acids, bases, salt solutions, and organic solvents. Stainless steel elbows, due to their material properties, can effectively resist the erosion of these corrosive media, thereby extending the service life of pipeline systems.

For example, in sulfuric acid production facilities, pipelines need to transport high concentrations of sulfuric acid. Ordinary carbon steel elbows will quickly corrode in this environment, while stainless steel elbows (such as 316L stainless steel elbows) can withstand the corrosion of sulfuric acid, ensuring the safe operation of the pipeline system. 316L stainless steel contains a high amount of molybdenum, which makes it resistant to corrosion even in chlorine containing environments such as hydrochloric acid solutions.

Data support: 316L stainless steel has good corrosion resistance to sulfuric acid concentrations below 10%, nitric acid concentrations below 30%, and hydrochloric acid concentrations below 5% at room temperature.

High temperature resistance performance

Function: In the chemical production process, many reactions need to be carried out under high temperature conditions, and pipeline systems need to withstand high temperatures. Stainless steel elbows can maintain good mechanical properties and chemical stability in high temperature environments, without deformation or damage due to high temperatures.

For example, in a petroleum cracking unit, pipelines need to withstand temperatures of up to 800 ℃ or higher. Stainless steel elbows (such as 304H or 310S stainless steel elbows) can maintain stability in such high temperature environments without oxidation or deformation. 310S stainless steel contains high levels of chromium and nickel elements, which can form a stable oxide film at high temperatures to prevent further oxidation.

Strength and reliability

Function: Chemical pipeline systems typically require high pressure, and stainless steel elbows have high mechanical strength to ensure the safe operation of the pipeline system. Its high strength and good toughness enable it to withstand fluid pressure inside pipelines as well as external mechanical stress.

For example, in the inlet and outlet pipelines of a high-pressure reactor, the pipeline pressure may reach several tens of megapascals. Stainless steel elbows can withstand this high pressure, ensuring the safe transportation of fluids in pipelines. For example, the yield strength of 304 stainless steel elbows can reach 205 MPa, and the tensile strength can reach 515 MPa, which can meet the pressure requirements of most chemical pipelines.

Reduce fluid resistance

Function: The inner wall of the stainless steel elbow is smooth, which can reduce the resistance of fluid in the pipeline and improve the efficiency of fluid transportation. Especially for long radius elbows, their bending radius is large, and the local resistance when fluid passes through is small, which can effectively reduce energy loss.

For example, in the transportation pipelines of large chemical plants, the use of long radius stainless steel elbows can reduce the pressure loss of fluids at bends, thereby reducing the energy consumption of pumps. For example, the local resistance coefficient of long radius elbows is usually 30% -50% lower than that of short radius elbows, which can significantly improve the conveying efficiency of pipeline systems.

Maintenance and Cleaning

Function: The surface of the stainless steel elbow is smooth, not prone to impurities and pollutants, and easy to clean and maintain. In chemical production, pipelines need to be regularly cleaned and maintained to prevent impurities from accumulating and causing pipeline blockage or corrosion.

For example, in the production process of food additives, pipelines need to be regularly cleaned and disinfected. The smooth surface of stainless steel elbows can reduce the amount of cleaning agents used and facilitate the cleaning operation of equipment such as high-pressure water guns. In addition, the corrosion resistance of stainless steel material also prevents the elbow from being corroded by cleaning agents during the cleaning process.

Comply with industry standards and regulations

Function: The chemical industry has strict requirements for the safety, reliability, and environmental friendliness of pipeline systems. Stainless steel elbows comply with various international and domestic standards (such as ASME, DIN, GB, etc.) and can meet the strict requirements of the chemical industry for pipeline systems.

For example, in the construction of chemical plants, pipeline systems need to comply with national safety production laws and chemical industry standards. The manufacturing and use of stainless steel elbows comply with these standards, ensuring the safe operation of pipeline systems and avoiding safety production accidents caused by pipeline leaks or damage.

Economy

Function: Although the initial cost of stainless steel elbows may be higher than that of ordinary carbon steel elbows, due to their corrosion resistance and long lifespan, they can reduce the maintenance and replacement costs of pipeline systems in the long run, making them more economical.

For example, in chlor alkali chemical production, although the initial investment is relatively high, the use of 316L stainless steel elbows has strong corrosion resistance and a service life of 10-15 years, while ordinary carbon steel elbows may need to be replaced within 2-3 years. From the perspective of full lifecycle cost, stainless steel elbows are more economical.
