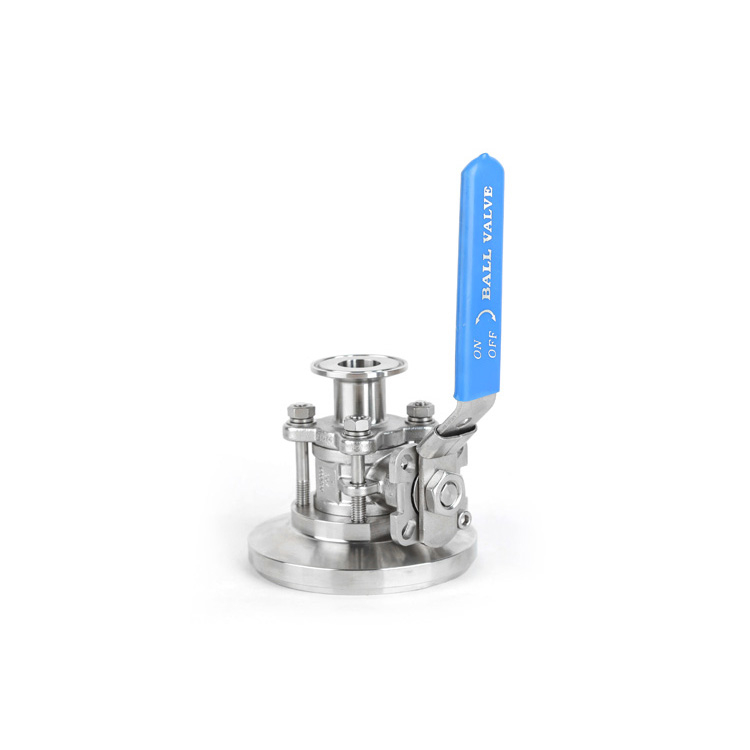

HD-BAV067
HAIDE
| Availability: | |
|---|---|
| Quantity: | |
Premium Materials: SS304 or SS316L stainless steel for excellent corrosion and oxidation resistance.
Sanitary Finish: Internally and externally mirror polished (Ra ≤ 0.4 µm), no dead corners, easy cleaning & disinfection.
Three-Piece / Clamped End Design: Enables easy assembly / disassembly, fast cleaning, and no tools required for certain clamp designs.
Sealing Material: Food-grade PTFE sealing rings for leak-proof performance and hygiene compliance.
Wide Working Range: Pressure 0-16 bar, temperature range -10 °C to 135 °C (peak to 150 °C), suitable for standard and harsh conditions.
Multiple Connection Types: Options for clamp, welded, or flange ends based on installation requirements.
| Parameter | Specification |
|---|---|
| Model | HD-BAV067 (other models available) |
| Material | Stainless Steel SS304 / SS316L |
| Valve Type | Tank Bottom Ball Valve, Three-Piece Design |
| Connection End | Clamped End (others: weld, flange upon request) |
| Seal Material | PTFE (food-grade) |
| Surface Roughness | Ra ≤ 0.4 µm internal & external mirror finish |
| Working Pressure | 0 to 16 bar |
| Temperature Range | -10 °C to 135 °C (short-term up to 150 °C) |
| Media | Liquids, viscous fluids, clean/slightly contaminated fluids |
| Handle / Operation | Manual lever, optionally automation or actuator mounting |
This tank bottom ball valve is widely used in:
Food & Beverage Processing: Enabling full drainage of tanks, cleaning, control of fluids in dairy, brewery, juice, edible oils.
Pharmaceutical / Biotech: Cleanroom tanks, sterile vessels, reactors, formulation tanks requiring hygienic drainage and minimal contamination.
Chemical & Cosmetic Production: Handling of chemicals, creams, gels, where hygiene and material compatibility are important.
Laboratory & R&D Equipment: Pilot plants, research reactors, small-scale production vats.
Dairy Industry: Tanks for milk storage, yogurt / cheese vats, CIP (Clean-in-Place) systems.
Direct from factory supply → better pricing & custom options.
Strict sanitary standards and high-quality stainless steel.
Polished finish & hygienic design reduce contamination & facilitate cleaning.
Reliable sealing & wide temperature/pressure range for versatility.
Easy maintenance with three-piece / clamped-end design.
Professional & prompt after-sales and global shipping available.
Q1: What is the benefit of a three-piece clamped end valve versus a welded or flanged end?
A1: Clamped ends allow easier installation and removal without welding, enable quick disassembly for cleaning/maintenance, and reduce downtime.
Q2: Can this valve be used under sterilization / CIP / SIP processes?
A2: Yes. The mirror polish, sanitary design, and PTFE seals make it compatible with CIP/SIP. Ensure material selections (316L, gasket) suit the specific sterilization conditions.
Q3: How to choose between SS304 and SS316L?
A3: SS316L offers better corrosion resistance especially in chloride environments or where more aggressive cleaning agents are used. SS304 is generally adequate for less aggressive environments.
Q4: What seal material is used, and is it replaceable?
A4: The valve uses food-grade PTFE seals (or optionally other hygienic seals). These seals are replaceable during maintenance.
